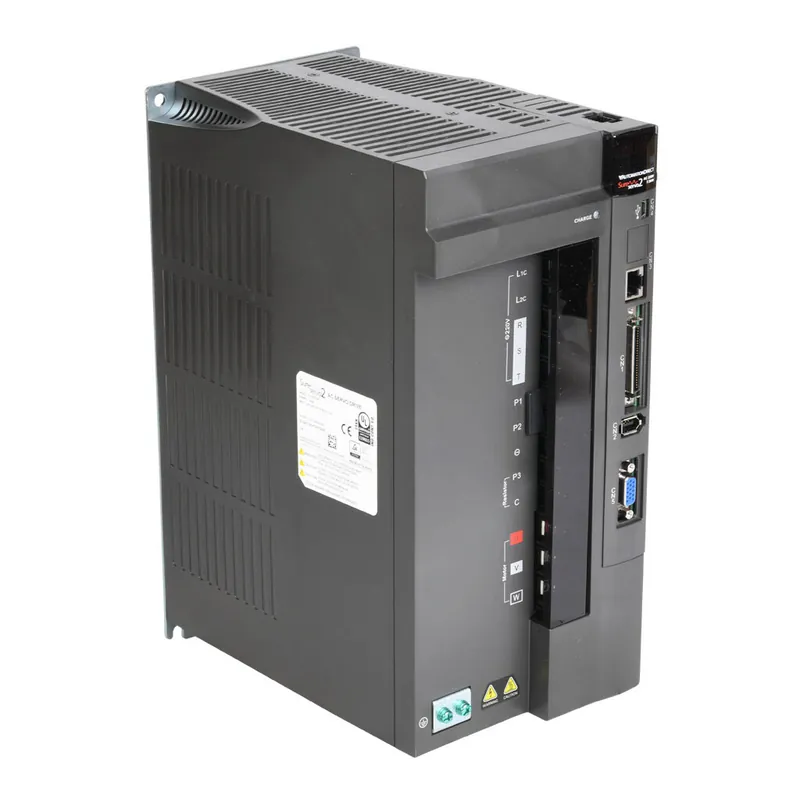

Weekend Sale SV2A-2750

SureServo2 servo drive, 7.5 kW, 230 VAC, 3-phase, (1) RS-485 (RJ45) port(s), Modbus RTU and Modbus ASCII. For use with 7.5 kW systems. Optional EtherNet/IP and Modbus TCP cards available.

Brand: SureServo2
Item: Servo drive
Voltage Type: AC
Amperage Rating: 37.3A
Power Rating: 7.5 kW
Nominal Input Voltage: 230 VAC
Number of Input Phases: 3
Output Type: SVPWM output
Steps per Revolution: Up to 24-bit (16777216 ppr)
Encoder Output: Yes
Encoder Resolution: 24-bit (16777216 ppr)
Communication Port and Connection Type(s):

• (1) RS-485 (RJ45)

Port Protocol(s):

• Modbus RTU Slave
• Modbus ASCII Slave

Port Speed(s):

• up to 115.2k baud

Temperature Rating: 0 to 55 deg C
Enclosure Type: Enclosed
IP Rating: IP20
Mounting: Panel
Control Mode: Torque, velocity and position
Command Signal(s):

• step and direction
• CW/CCW
• A/B Quad
• internal indexing (via discrete input and communication port)
• torque and velocity (via analog input)

Number of Discrete Input Points: 10
Discrete Input Type: Sinking/sourcing
Number of Discrete Output Points: 6
Discrete Output Type: Sinking/sourcing
Number of Analog Input Channels: 2
Analog Input Signal Type: Voltage
Input Voltage Signal Range: +/- 10 VDC
Number of Analog Output Channels: 2
Analog Output Signal Type: Voltage
Output Voltage Signal Range: +/- 8 VDC
Tuning Mode: Easy/auto (4 methods)/manual
Protection Type(s):

• overcurrent
• overvoltage
• undervoltage
• over-temperature
• regeneration error
• overload
• velocity/position error
• encoder error
• secondary encoder position error
• communication error
• input phase loss
• short circuit

Configuration: Software and keypad
For Use With: 7.5 kW systems
Additional Information: Optional EtherNet/IP and Modbus TCP cards available
