Description

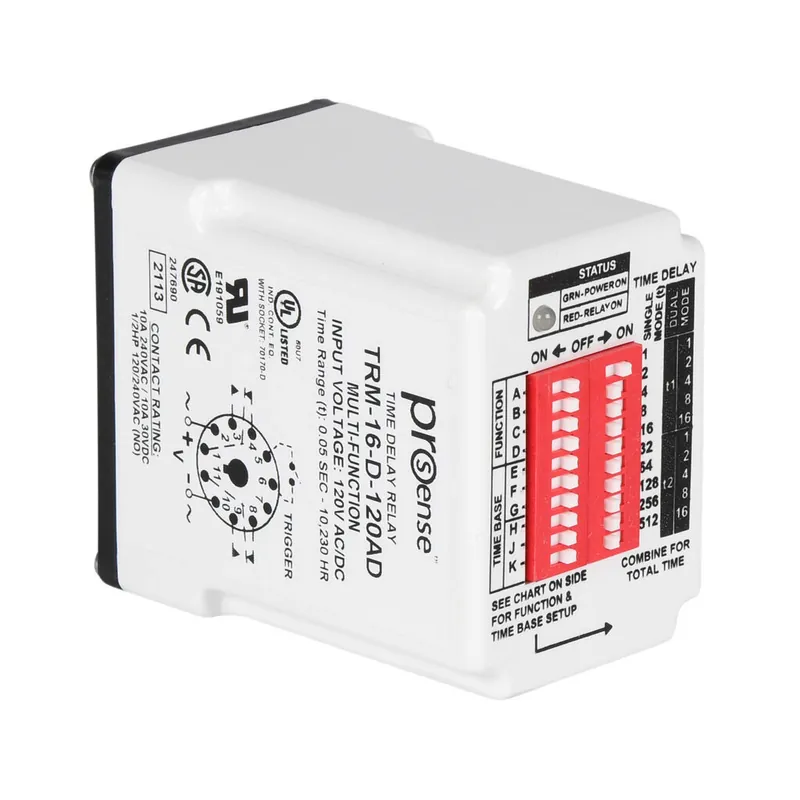

ProSense multi-mode relay timer, 0.05 seconds to 10,230 hours selectable timing range, 120 VAC/VDC operating voltage, 10A contact rating, (1) DPDT timed relay output(s), socket mount, 11-pin. Requires Macromatic 70170-D relay socket.
Brand: ProSense
Item: Relay timer
Timer Type: Multi-mode
Indicator: LED
Timing Range: 0.05 seconds to 10,230 hours selectable
Operating Voltage: 120 VAC/VDC
Timer Output Type(s): (1) DPDT timed relay
Output Type: (2) N.O., (2) N.C.
Timer Function(s):
Item: Relay timer
Timer Type: Multi-mode
Indicator: LED
Timing Range: 0.05 seconds to 10,230 hours selectable
Operating Voltage: 120 VAC/VDC
Timer Output Type(s): (1) DPDT timed relay
Output Type: (2) N.O., (2) N.C.
Timer Function(s):
- on-delay
- triggered on-delay
- off-delay
- on/off delay
- on-interval
- flasher (single-shot)
- on-flasher
- on-delay/flasher
- off-flasher
- watchdog
- single-shot
- falling edge (single-shot)
- on-cycle
- off-cycle
- delayed interval
- triggered delayed interval
Contact Rating: 10A
Mounting: Socket
Connector Type: 11-pin
Requires: Macromatic 70170-D relay socket
