Description

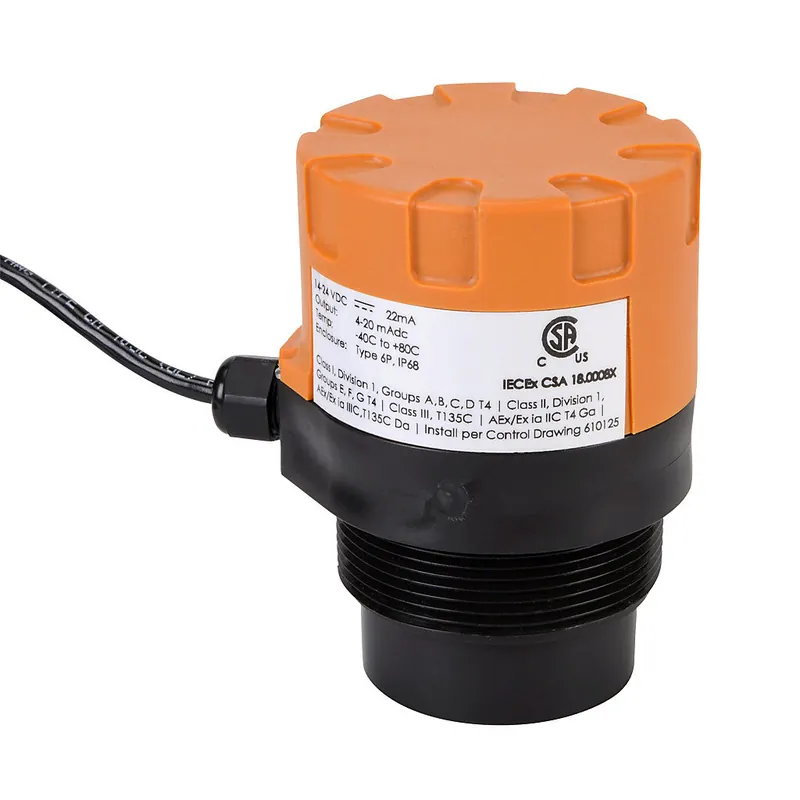

Flowline EchoTouch intrinsically safe reflective ultrasonic liquid level sensor, 4.9ft/1.5m sensing range, 4-20 mA, 14-28 VDC, 2in male NPT process connection.
Brand: Flowline
Item: Level sensor
Series: EchoTouch
Sensor Type: Intrinsically safe reflective ultrasonic
Media Type: Water, oil and chemicals
Mounting: Vertical top
Process Temperature: -40 to 176 deg F
Sensing Range: 4.9ft/1.5m
Output: 4-20 mA
Operating Voltage: 14-28 VDC
Housing Size: 2.75in diameter
Housing Material: Polypropylene
IP Rating: IP68
NEMA Rating: 6P
Wetted Parts: Polyvinylidene fluoride (PVDF)
Process Connection: 2in male NPT
Electrical Connection: 48in integral 4-conductor shielded cable
Requires: An LI99-2001 Fob USB adapter (purchased separately) and WEBCAL software (free download from the AutomationDirect Web site) are required for sensor configuration and firmware updates
Application: Hazardous location rated
Item: Level sensor
Series: EchoTouch
Sensor Type: Intrinsically safe reflective ultrasonic
Media Type: Water, oil and chemicals
Mounting: Vertical top
Process Temperature: -40 to 176 deg F
Sensing Range: 4.9ft/1.5m
Output: 4-20 mA
Operating Voltage: 14-28 VDC
Housing Size: 2.75in diameter
Housing Material: Polypropylene
IP Rating: IP68
NEMA Rating: 6P
Wetted Parts: Polyvinylidene fluoride (PVDF)
Process Connection: 2in male NPT
Electrical Connection: 48in integral 4-conductor shielded cable
Requires: An LI99-2001 Fob USB adapter (purchased separately) and WEBCAL software (free download from the AutomationDirect Web site) are required for sensor configuration and firmware updates
Application: Hazardous location rated
