Description

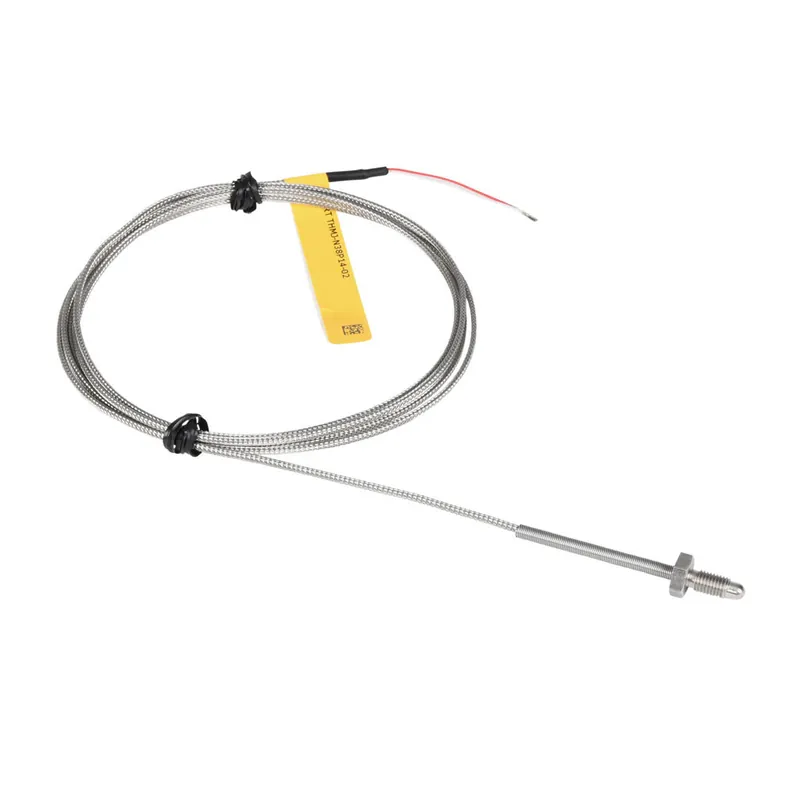

ProSense temperature sensor, Type J thermocouple, threaded bolt sensor, ungrounded junction, 3/8in bolt length, 3/16in tip, stainless steel sheath, 1/4-28 UNF process connection, 6ft 24 AWG wire leads.
Brand: ProSense
Item: Temperature sensor
Sensor Element: Type J thermocouple
Sensor Type: Threaded bolt sensor
Accuracy: Standard limits of error
Junction Type: Ungrounded
Bolt Length: 3/8in
Tip Length: 3/16in
Tip Diameter: 3/16in
Sheath Material: Stainless steel
Sensor Insulation: Fiberglass
Process Connection: 1/4-28 UNF
Electrical Connection: 6ft 24 AWG wire leads
Conductor Insulation Material: Closed cell sponge rubber
Temperature Sensing Range: 0 to 900 deg F
Item: Temperature sensor
Sensor Element: Type J thermocouple
Sensor Type: Threaded bolt sensor
Accuracy: Standard limits of error
Junction Type: Ungrounded
Bolt Length: 3/8in
Tip Length: 3/16in
Tip Diameter: 3/16in
Sheath Material: Stainless steel
Sensor Insulation: Fiberglass
Process Connection: 1/4-28 UNF
Electrical Connection: 6ft 24 AWG wire leads
Conductor Insulation Material: Closed cell sponge rubber
Temperature Sensing Range: 0 to 900 deg F
