Description

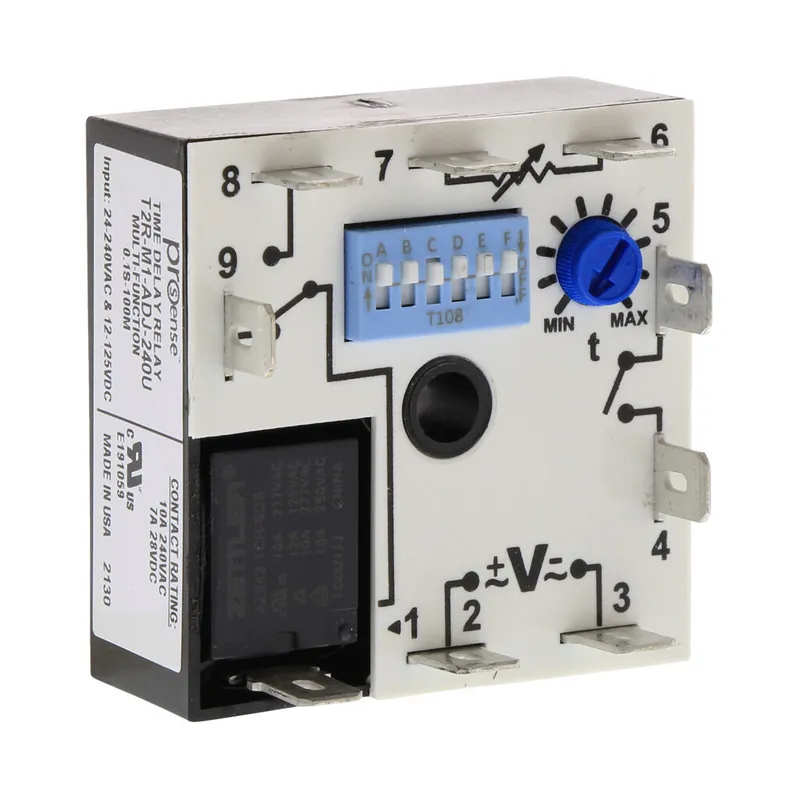

ProSense multi-mode delay relay timer, 0.1 seconds to 100 minutes selectable timing range, 24-240 VAC and 12-125 VDC operating voltage, 10A contact rating, (1) SPDT timed relay output(s), surface mount, 1/4in male quick-connect terminal.
Brand: ProSense
Item: Relay timer
Timer Type: Multi-mode delay
Timing Range: 0.1 seconds to 100 minutes selectable
Operating Voltage: 24-240 VAC and 12-125 VDC
Timer Output Type(s): (1) SPDT timed relay
Output Type: (1) N.O., (1) N.C.
Timer Function(s):
Item: Relay timer
Timer Type: Multi-mode delay
Timing Range: 0.1 seconds to 100 minutes selectable
Operating Voltage: 24-240 VAC and 12-125 VDC
Timer Output Type(s): (1) SPDT timed relay
Output Type: (1) N.O., (1) N.C.
Timer Function(s):
- on-delay
- off-delay
- on-interval
- single-shot
Contact Rating: 10A
Mounting: Surface
Connector Type: 1/4in male quick-connect terminal
