Description

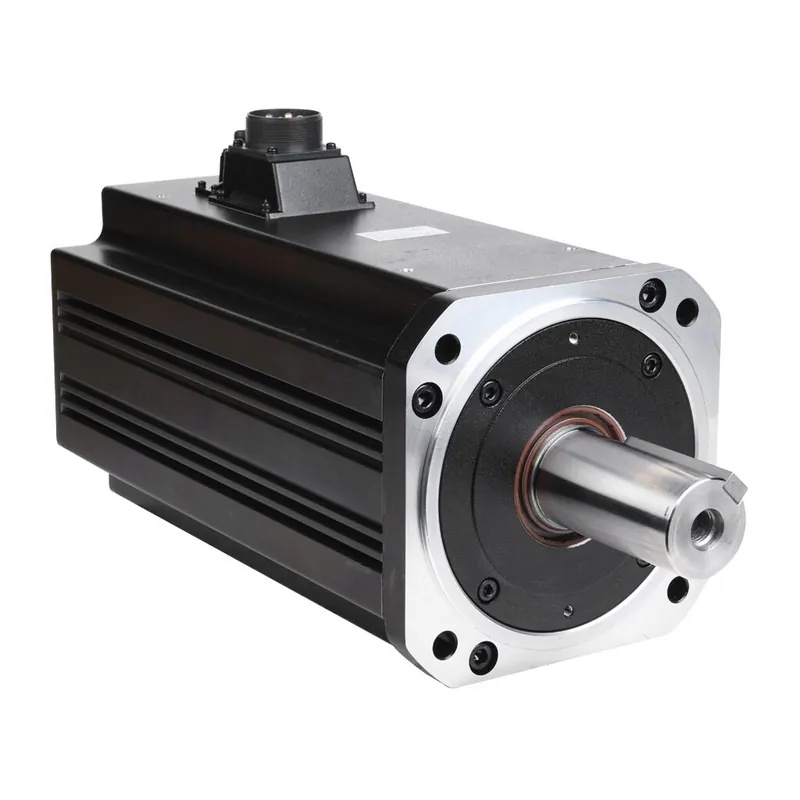

SureServo2 high inertia AC brushless servo motor, 15 kW, 3-phase input, 24-bit (16777216 ppr) encoder, integrated brake. For use with SureServo2 SV2A-2F00 15 kW drive.
Brand: SureServo2
Item: Servo motor
Performance Level: High inertia
Voltage Type: AC
Motor Type: Brushless
Power Rating: 15 kW
Number of Input Phases: 3
Rated Speed: 1500rpm
Maximum Speed: 2000rpm
Amperage Rating: 67A
Holding Torque Rating: 844 lb-in
Encoder Resolution: 24-bit (16777216 ppr)
Integrated Brake: Yes
Motor Frame: 220mm
IP Rating: IP65
Shaft Type: Single
Shaft Diameter: 55mm
Steps per Revolution: Up to 24-bit (16777216 ppr)
For Use With: SureServo2 SV2A-2F00 15 kW drive
Includes: (3) integrated MS connectors for encoder, power and brake cables
Requires: SureServo2 SV2C-Pxxx power cable, SV2C-Exxx encoder cable and SV2C-Bxxx brake cable
Item: Servo motor
Performance Level: High inertia
Voltage Type: AC
Motor Type: Brushless
Power Rating: 15 kW
Number of Input Phases: 3
Rated Speed: 1500rpm
Maximum Speed: 2000rpm
Amperage Rating: 67A
Holding Torque Rating: 844 lb-in
Encoder Resolution: 24-bit (16777216 ppr)
Integrated Brake: Yes
Motor Frame: 220mm
IP Rating: IP65
Shaft Type: Single
Shaft Diameter: 55mm
Steps per Revolution: Up to 24-bit (16777216 ppr)
For Use With: SureServo2 SV2A-2F00 15 kW drive
Includes: (3) integrated MS connectors for encoder, power and brake cables
Requires: SureServo2 SV2C-Pxxx power cable, SV2C-Exxx encoder cable and SV2C-Bxxx brake cable
