Description

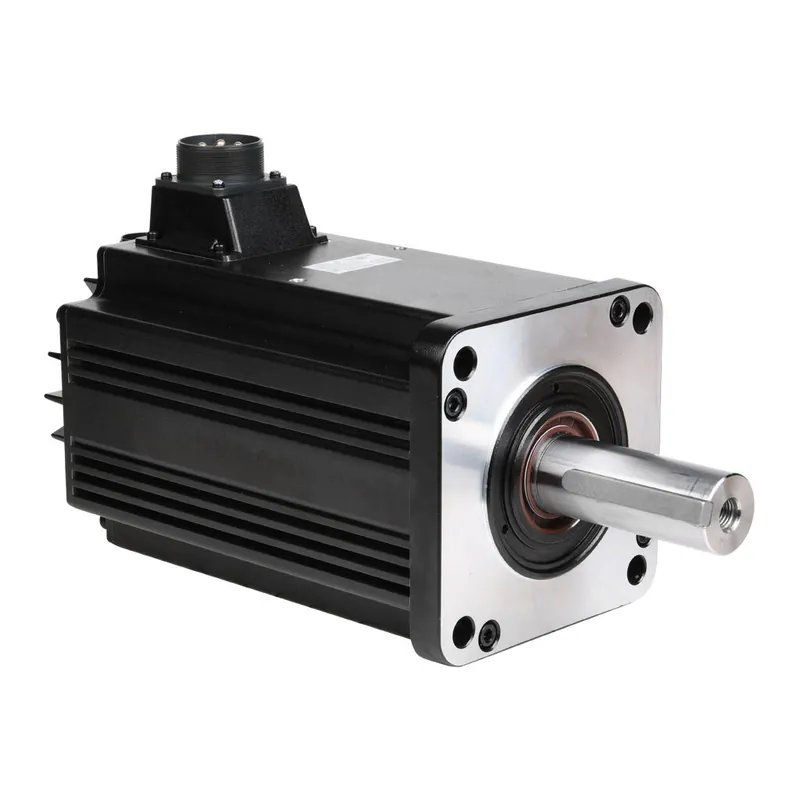

SureServo2 high inertia AC brushless servo motor, 7.5 kW, 3-phase input, 24-bit (16777216 ppr) encoder. For use with SureServo2 SV2A-2750 7.5 kW drive.
Brand: SureServo2
Item: Servo motor
Performance Level: High inertia
Voltage Type: AC
Motor Type: Brushless
Power Rating: 7.5 kW
Number of Input Phases: 3
Rated Speed: 1500rpm
Maximum Speed: 3000rpm
Amperage Rating: 47.5A
Holding Torque Rating: 422 lb-in
Encoder Resolution: 24-bit (16777216 ppr)
Integrated Brake: No
Motor Frame: 180mm
IP Rating: IP65
Shaft Type: Single
Shaft Diameter: 42mm
Steps per Revolution: Up to 24-bit (16777216 ppr)
For Use With: SureServo2 SV2A-2750 7.5 kW drive
Includes: (2) integrated MS connectors for encoder and power cables
Requires: SureServo2 SV2C-Pxxx power cable and SV2C-Exxx encoder cable
