Description

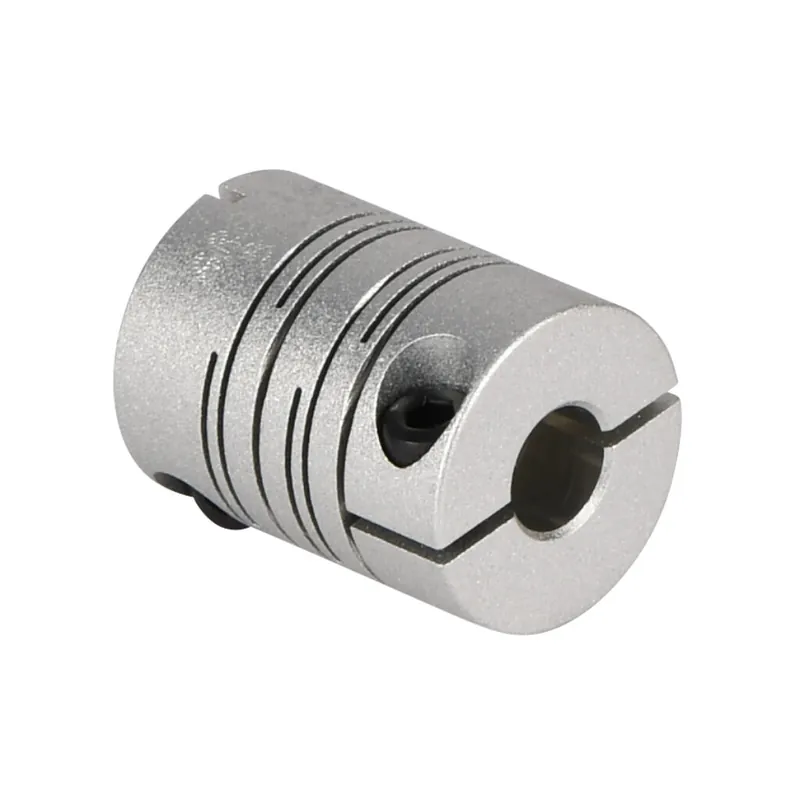

Sung-Il Machinery drive coupling, servo-beam, 7075-T6 aluminum alloy, clamp, size 16, 5 x 6mm bore.
Brand: Sung-Il Machinery
Item: Drive coupling
Coupling Type: Servo-beam
Material: 7075-T6 aluminum alloy
Rated Torque: 0.4 N-m
Maximum Torque: 0.8 N-m
Maximum Angular Misalignment: 2.5 degrees
Maximum Parallel Misalignment: 0.15mm
Maximum RPM: 27000
Attachment Style: Clamp
Coupling Size: 16
Overall Length: 21.5mm
Bore Diameter: 5mm
Bore Diameter 2: 6mm
Outside Diameter: 16mm
Clamp Screw Fastening Torque: 1 N-m
Clamp Screw Size: M2.6
Item: Drive coupling
Coupling Type: Servo-beam
Material: 7075-T6 aluminum alloy
Rated Torque: 0.4 N-m
Maximum Torque: 0.8 N-m
Maximum Angular Misalignment: 2.5 degrees
Maximum Parallel Misalignment: 0.15mm
Maximum RPM: 27000
Attachment Style: Clamp
Coupling Size: 16
Overall Length: 21.5mm
Bore Diameter: 5mm
Bore Diameter 2: 6mm
Outside Diameter: 16mm
Clamp Screw Fastening Torque: 1 N-m
Clamp Screw Size: M2.6
