Description

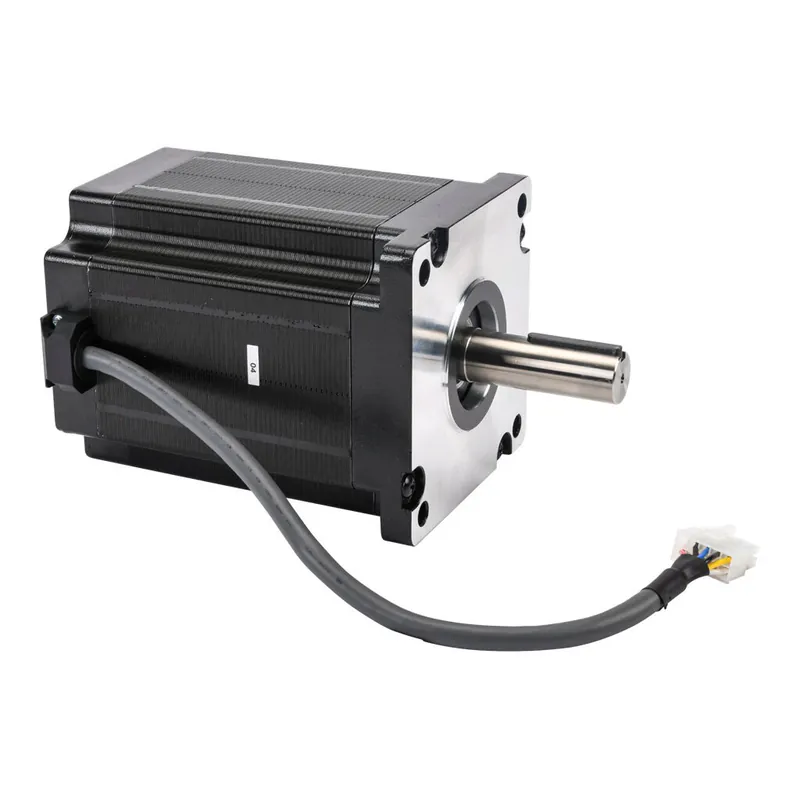

SureStep stepper motor, NEMA 42 frame, IP40, single shaft, 8A, 3116 oz-in holding torque, 1.8-degree step angle, 200 steps per revolution, bipolar. Requires SureStep STP-EXT42H-xxx cable.
Brand: SureStep
Item: Stepper motor
Voltage Type: DC
Motor Type: Brushless
Number of Output Phases: 2
Integrated Brake: No
Motor Frame: NEMA 42
IP Rating: IP40
Shaft Type: Single
Shaft Diameter: 3/4in
Amperage Rating: 8A
Holding Torque Rating: 3116 oz-in
Step Angle: 1.8-degree
Steps per Revolution: 200
Winding Type: Bipolar
Connector Type: 10-pin male
Requires: SureStep STP-EXT42H-xxx cable
Additional Information: Motors can be wired in series or parallel configuration
Item: Stepper motor
Voltage Type: DC
Motor Type: Brushless
Number of Output Phases: 2
Integrated Brake: No
Motor Frame: NEMA 42
IP Rating: IP40
Shaft Type: Single
Shaft Diameter: 3/4in
Amperage Rating: 8A
Holding Torque Rating: 3116 oz-in
Step Angle: 1.8-degree
Steps per Revolution: 200
Winding Type: Bipolar
Connector Type: 10-pin male
Requires: SureStep STP-EXT42H-xxx cable
Additional Information: Motors can be wired in series or parallel configuration
