Description

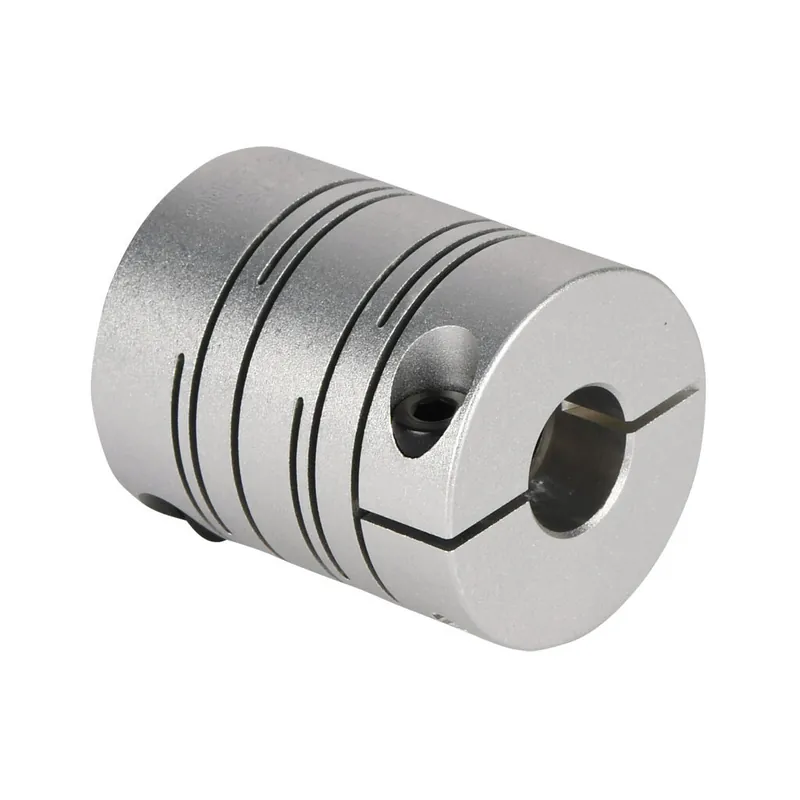

Sung-Il Machinery drive coupling, servo-beam, 7075-T6 aluminum alloy, clamp, size 32, 10 x 12mm bore.
Brand: Sung-Il Machinery
Item: Drive coupling
Coupling Type: Servo-beam
Material: 7075-T6 aluminum alloy
Rated Torque: 3.8 N-m
Maximum Torque: 7.6 N-m
Maximum Angular Misalignment: 2.5 degrees
Maximum Parallel Misalignment: 0.2mm
Maximum RPM: 14000
Attachment Style: Clamp
Coupling Size: 32
Overall Length: 39mm
Bore Diameter: 10mm
Bore Diameter 2: 12mm
Outside Diameter: 31.8mm
Clamp Screw Fastening Torque: 3.5 N-m
Clamp Screw Size: M4
