Description

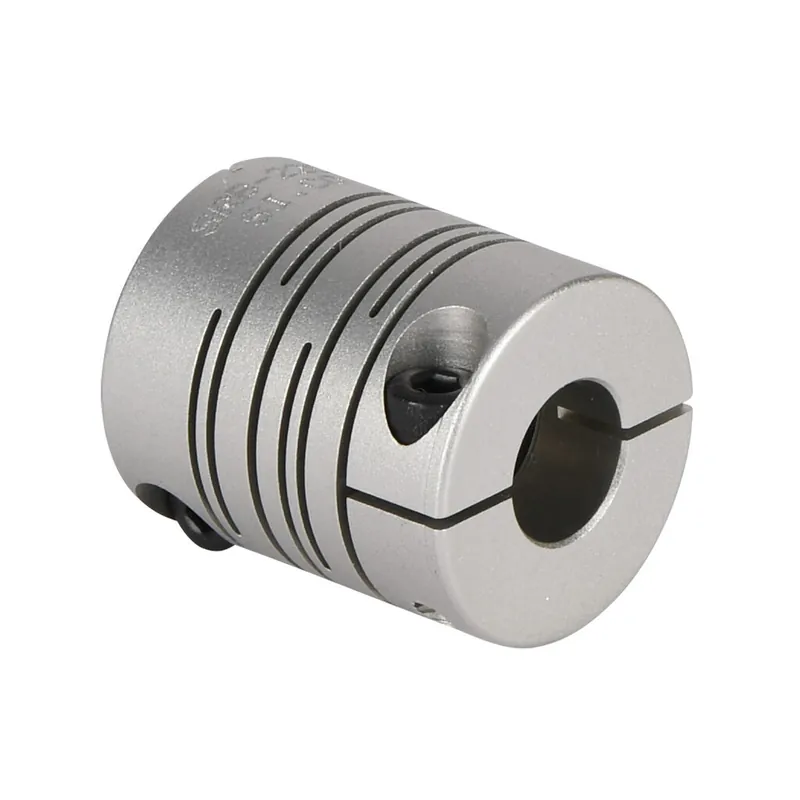

Sung-Il Machinery drive coupling, servo-beam, 7075-T6 aluminum alloy, clamp, size 22, 6.35 (1/4in) x 9.525mm (3/8in) bore.
Brand: Sung-Il Machinery
Item: Drive coupling
Coupling Type: Servo-beam
Material: 7075-T6 aluminum alloy
Rated Torque: 1 N-m
Maximum Torque: 2 N-m
Maximum Angular Misalignment: 2.5 degrees
Maximum Parallel Misalignment: 0.15mm
Maximum RPM: 18000
Attachment Style: Clamp
Coupling Size: 22
Overall Length: 26.5mm
Bore Diameter: 1/4in
Bore Diameter 2: 3/8in
Outside Diameter: 22.2mm
Clamp Screw Fastening Torque: 1.7 N-m
Clamp Screw Size: M3
