Description

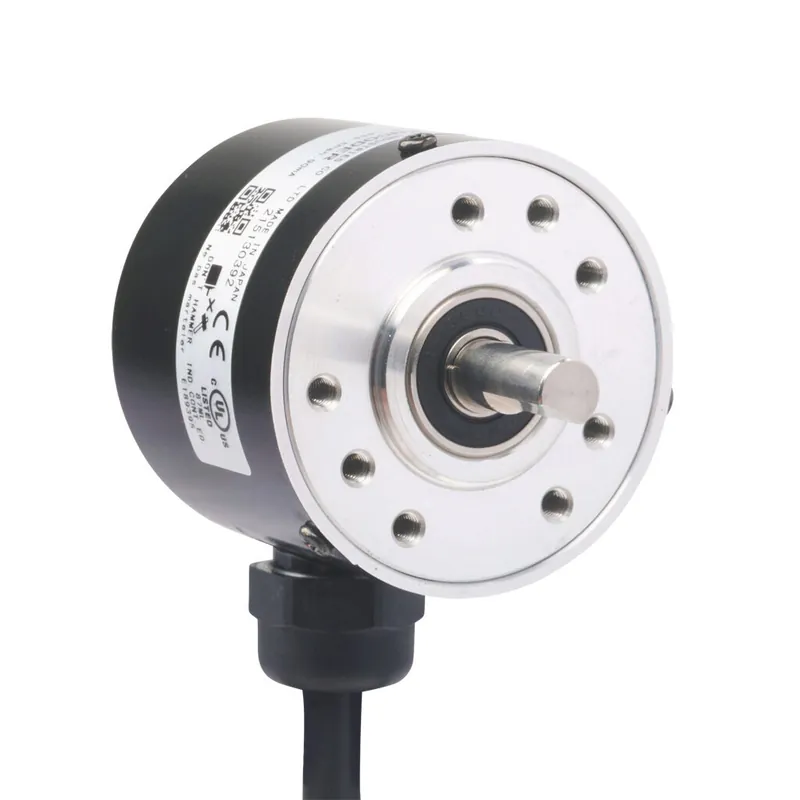

JTEKT TRD-SR series incremental (quadrature) rotary encoder, 5-26 VDC, NPN open collector output, light duty, 100 ppr, 6mm solid shaft, 40mm diameter body, IP65, 6.5ft/2m cable length, radial exit, pigtail.
Brand: JTEKT
Item: Encoder
Series: TRD-SR
Feedback Type: Incremental (quadrature)
Encoder Type: Rotary
Voltage Rating: 5-26 VDC
Encoder Output Type: NPN open collector
Duty Rating: Light duty
Programmable Encoder Resolution: No
Encoder Resolution: 100 ppr
Shaft Type: Solid
Shaft Diameter: 6mm
Radial Shaft Load: 30N
Axial Shaft Load: 20N
Frequency Response: 200 kHz
Speed Rating: 6000rpm
Flange Mount: No
Encoder Body Diameter: 40mm
Housing Material: Aluminum
IP Rating: IP65
Cable Length: 6.5ft/2m
Cable Diameter Size: 6mm
Wire Size: 26 AWG
Exit Orientation: Radial
Connector Type: Pigtail
Includes: Mounting hardware
