Description

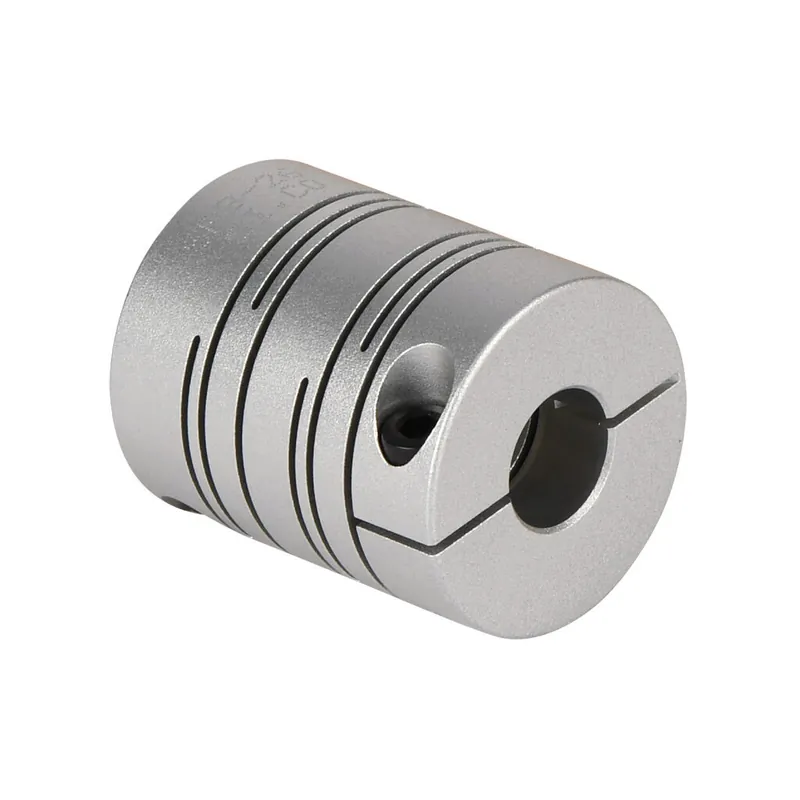

Sung-Il Machinery drive coupling, servo-beam, 7075-T6 aluminum alloy, clamp, size 26, 6 x 10mm bore.
Brand: Sung-Il Machinery
Item: Drive coupling
Coupling Type: Servo-beam
Material: 7075-T6 aluminum alloy
Rated Torque: 2 N-m
Maximum Torque: 4 N-m
Slip Torque: 2.8 N-m
Maximum Angular Misalignment: 2.5 degrees
Maximum Parallel Misalignment: 0.2mm
Maximum RPM: 17000
Attachment Style: Clamp
Coupling Size: 26
Overall Length: 31.5mm
Bore Diameter: 6mm
Bore Diameter 2: 10mm
Outside Diameter: 26.2mm
Clamp Screw Fastening Torque: 1.7 N-m
Clamp Screw Size: M3
