Description

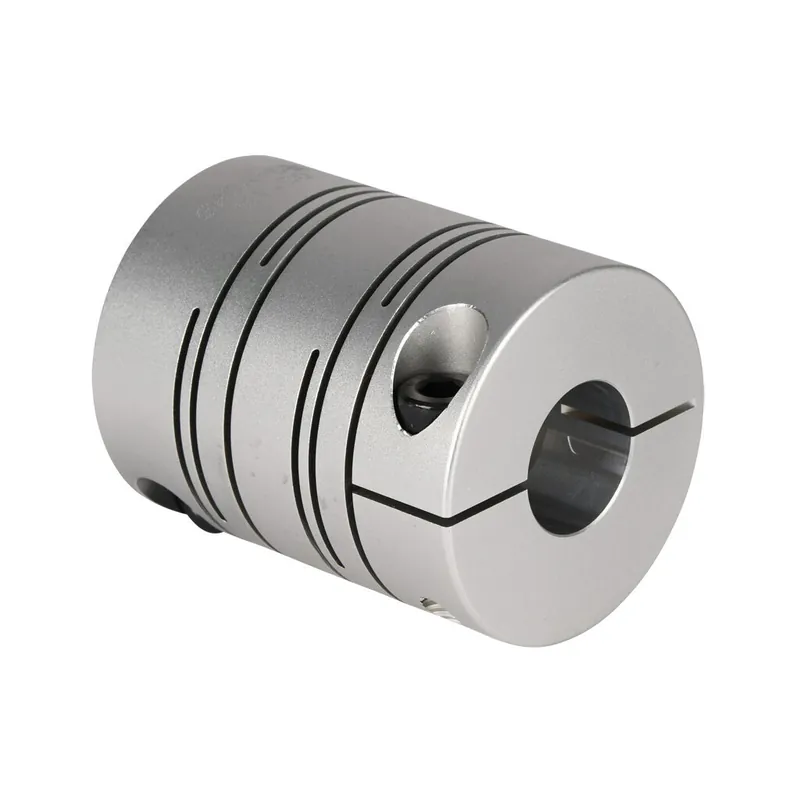

Sung-Il Machinery drive coupling, servo-beam, 7075-T6 aluminum alloy, clamp, size 60, 18 x 24mm bore.
Brand: Sung-Il Machinery
Item: Drive coupling
Coupling Type: Servo-beam
Material: 7075-T6 aluminum alloy
Rated Torque: 30 N-m
Maximum Torque: 60 N-m
Slip Torque: 46 N-m
Maximum Angular Misalignment: 2.5 degrees
Maximum Parallel Misalignment: 0.25mm
Maximum RPM: 7000
Attachment Style: Clamp
Coupling Size: 60
Overall Length: 76.2mm
Bore Diameter: 18mm
Bore Diameter 2: 24mm
Outside Diameter: 60mm
Clamp Screw Fastening Torque: 30 N-m
Clamp Screw Size: M8
