Description

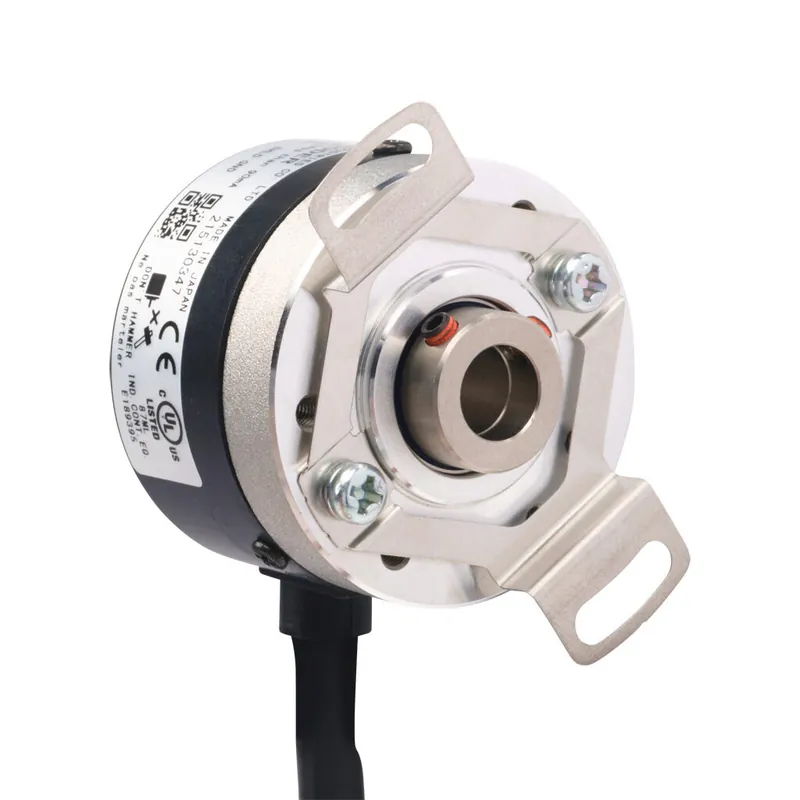

JTEKT TRD-SR series incremental (quadrature) rotary encoder, 5 VDC, line driver (differential) output, light duty, 100 ppr, 8mm hollow shaft, 38mm diameter body, IP50, 6.5ft/2m cable length, radial exit, pigtail.
Brand: JTEKT
Item: Encoder
Series: TRD-SR
Feedback Type: Incremental (quadrature)
Encoder Type: Rotary
Voltage Rating: 5 VDC
Encoder Output Type: Line driver (differential)
Duty Rating: Light duty
Programmable Encoder Resolution: No
Encoder Resolution: 100 ppr
Shaft Type: Hollow
Shaft Diameter: 8mm
Radial Shaft Load: 30N
Axial Shaft Load: 20N
Frequency Response: 200 kHz
Speed Rating: 6000rpm
Flange Mount: No
Encoder Body Diameter: 38mm
Housing Material: Aluminum
IP Rating: IP50
Cable Length: 6.5ft/2m
Cable Diameter Size: 6mm
Wire Size: 26 AWG
Exit Orientation: Radial
Connector Type: Pigtail
